Nimbus::Transformational Class Reference

#include <Transformational.h>

Inheritance diagram for Nimbus::Transformational:

Collaboration diagram for Nimbus::Transformational:

Classes
class	TranslationListener
class	TranslationQueryListener

Public Member Functions
	Transformational (BehaviourType type, World *world, EventSystem *eventSystem)
	Transformational (BehaviourType type, World *world, Ogre::ConfigFile::SettingsMultiMap *initializingSettings, EventSystem *eventSystem)
	Transformational (Transformational *other, World *world, int id, EventSystem *eventSystem)
virtual	~Transformational (void)
virtual void	startup (void)
virtual void	update (void)
virtual void	shutdown (void)
virtual void	forceUpdate (void)
virtual Behaviour *	clone (Ogre::ConfigFile::SettingsMultiMap *initializingSettings, EventSystem *eventSystem)
virtual Behaviour *	clone (int id, EventSystem *eventSystem)
Public Member Functions inherited from Nimbus::Behaviour
	Behaviour (BehaviourType type, World *world, EventSystem *eventSystem)
	Behaviour (BehaviourType type, World *world, Ogre::ConfigFile::SettingsMultiMap *initializingSettings, EventSystem *eventSystem)
	Behaviour (Behaviour *other, World *world, int id, EventSystem *eventSystem)
BehaviourType	getBehaviourType ()

Protected Attributes
Nimbus::Transformational::TranslationListener *	mTranslationListener
Nimbus::Transformational::TranslationQueryListener *	mTranslationQueryListener
Protected Attributes inherited from Nimbus::Behaviour
World *	mWorld
BehaviourType	mBehaviourType
GameEntityId	mParentId
EventSystem *	mEntityEventSystem

Detailed Description

Transformational is a class giving the entity the ability to have a position, rotation, scale, and velocity. While we're not so sure about that last one, that seems to make up a transformation... so that's why this is called Transformational.

(More than meets the eye!!!)

This tranformation is merely for virtual movement's sake, and does not directly effect the position that the entity is rendered at. This will be sent to the Renderable behaviour using an event-based messaging system.

Constructor & Destructor Documentation

Transformational::Transformational	(	BehaviourType	type,
		World *	world,
		EventSystem *	eventSystem
	)

Default constructor, taking a world pointer.

Parameters

type	The type of Behaviour being constructed.
world	A pointer to the game world.
eventSystem	A pointer to the parent entity's event system.

Here is the caller graph for this function:

Transformational::Transformational	(	BehaviourType	type,
		World *	world,
		Ogre::ConfigFile::SettingsMultiMap *	initializingSettings,
		EventSystem *	eventSystem
	)

Constructor based of a set of initial settings.

Parameters

type	The type of Behaviour being constructed.
world	A pointer to the game world.
intitializingSettings	A map of settings used to construct the intial entity.
eventSystem	A pointer to the parent entity's event system.

Transformational::Transformational	(	Transformational *	other,
		World *	world,
		int	id,
		EventSystem *	eventSystem
	)

Constructor taking a different behaviour and making a similar one.

Parameters

other	The template Transformational behaviour.
world	A pointer to the game world.
id	The id for the parent entity.
eventSystem	A pointer to the parent entity's event system.

Transformational::~Transformational ( void  )

virtual

Virtual destructor for destroying things.

Member Function Documentation

Behaviour * Transformational::clone ( Ogre::ConfigFile::SettingsMultiMap *  initializingSettings, EventSystem *  eventSystem  )

virtual

Duplicates the entity using the settings given. Currently merely returns a pointer given by the constructor.

Implements Nimbus::Behaviour.

Here is the call graph for this function:

Behaviour * Transformational::clone ( int  id, EventSystem *  eventSystem  )

virtual

Duplicates the entity based on the current copy. This is used to enable use of the prototype pattern.

Implements Nimbus::Behaviour.

Here is the call graph for this function:

void Transformational::forceUpdate ( void  )

virtual

Forces a position update.

Here is the caller graph for this function:

void Transformational::shutdown ( void  )

virtual

!! STUBBED !! Shuts down the behaviour, taking care of any major cleanup.

Implements Nimbus::Behaviour.

Here is the call graph for this function:

void Transformational::startup ( void  )

virtual

!! STUBBED !! Starts up the initial behaviour.

Implements Nimbus::Behaviour.

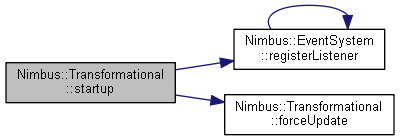

Here is the call graph for this function:

void Transformational::update ( void  )

virtual

!! STUBBED !! Updates the behaviour, influencing the entity.

Implements Nimbus::Behaviour.

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• C:/Users/Hazen/Documents/projects/Nimbus/src/Behaviours/Transformational.h
• C:/Users/Hazen/Documents/projects/Nimbus/src/Behaviours/Transformational.cpp
